Graph

The synkit.Graph package provides the core graph-based infrastructure used across SynKit. It supports graph construction, matching, canonicalization, and reaction-specific graph formalisms. Most workflows in rule application, mapping validation, and CRN exploration rely on these utilities.

Key submodules include:

• Matcher — graph isomorphism and subgraph search engines

• ITS — Internal Transition State (ITS) graph construction and decomposition

• MTG — Mechanistic Transition Graph generation and exploration

• FG — graph-native functional-group detection and audit tooling

• Context — reaction-center expansion for context-aware matching and analysis

Matcher

Isomorphism, subgraph search, and match enumeration for labeled molecular graphs. Powers rule application and equivalence checks.

ITS

Construct and decompose Internal Transition State graphs to isolate reaction centers and represent bond-order changes explicitly.

MTG

Build Mechanistic Transition Graphs from reaction-center ITS graphs to represent stepwise mechanisms and compare pathways.

FG

Detect functional groups directly on SynKit molecular graphs, with hierarchical labels and aromatic ring-system reporting.

Graph Canonicalization

The class GraphCanonicaliser canonicalises a graph by computing a deterministic relabeling of node indices. By default it employs a Weisfeiler–Lehman (WL) colour-refinement backend (wl_iterations=3) to obtain a consistent canonical form across isomorphic graphs [1].

Canonicalising an ITS graph and verifying isomorphism

from synkit.IO import rsmi_to_its
from synkit.Graph.canon_graph import GraphCanonicaliser
from synkit.Graph.Matcher.graph_matcher import GraphMatcherEngine

canon = GraphCanonicaliser(backend='wl', wl_iterations=3)

rsmi = (
    '[CH3:1][CH:2]=[O:3].'
    '[CH:4]([H:7])([H:8])[CH:5]=[O:6]>>'
    '[CH3:1][CH:2]=[CH:4][CH:5]=[O:6].'
    '[O:3]([H:7])([H:8])'
)

its_graph = rsmi_to_its(rsmi)
canon_graph = canon.canonicalise_graph(its_graph).canonical_graph

print(its_graph == canon_graph)  # structural relabeling differs

gm = GraphMatcherEngine(backend='nx')
print(gm.isomorphic(its_graph, canon_graph))  # graph structure is preserved

Example output

False
True

Matcher

The synkit.Graph.Matcher submodule provides matching engines for labeled graphs:

• GraphMatcherEngine — generic graph isomorphism / subgraph checks

• SubgraphMatch — subgraph search and containment tests

Example: Graph Isomorphism

Check whether two ITS graphs—derived from reaction SMILES differing only by atom-map ordering—are isomorphic.

Full-graph isomorphism check with GraphMatcherEngine

from synkit.IO import rsmi_to_its
from synkit.Graph.Matcher.graph_matcher import GraphMatcherEngine

rsmi_1 = (
    '[CH3:1][C:2](=[O:3])[OH:4].[CH3:5][OH:6]'
    '>>'
    '[CH3:1][C:2](=[O:3])[O:6][CH3:5].[OH2:4]'
)
rsmi_2 = (
    '[CH3:5][C:1](=[O:2])[OH:3].[CH3:6][OH:4]'
    '>>'
    '[CH3:5][C:1](=[O:2])[O:4][CH3:6].[OH2:3]'
)

its_1 = rsmi_to_its(rsmi_1)
its_2 = rsmi_to_its(rsmi_2)

gm = GraphMatcherEngine(
    backend='nx',
    node_attrs=['element', 'charge'],
    edge_attrs=['order'],
)

are_isomorphic = gm.isomorphic(its_1, its_2)
print(are_isomorphic)

Example output

True

Example: Subgraph Search

Locate a smaller “reaction-center” ITS graph as a subgraph within a larger ITS graph.

Reaction-center subgraph isomorphism with SubgraphMatch

from synkit.IO import rsmi_to_its
from synkit.Graph.Matcher.subgraph_matcher import SubgraphMatch

core_its = rsmi_to_its(
   '[CH3:1][C:2](=[O:3])[OH:4]>>[CH3:1][C:2](=[O:3])[O:6][CH3:5]',
   core=True
)

full_its = rsmi_to_its(
   '[CH3:5][C:1](=[O:2])[OH:3]>>[CH3:5][C:1](=[O:2])[O:4][CH3:6]'
)

sub_search = SubgraphMatch()
found = sub_search.subgraph_isomorphism(core_its, full_its)
print(found)

Example output

True

ITS

The synkit.Graph.ITS package supports the construction and decomposition of Internal Transition State (ITS) graphs:

• ITSConstruction — build ITS graphs from reactant/product graphs

• get_rc() — extract the minimal reaction-center subgraph

• its_decompose() — split an ITS graph into reactant/product graphs

Lewis State Graph fields

SynKit 1.4 introduces the Lewis State Graph (LSG) framework for the pure-Python reactor and new mechanistic work. Legacy ITS remains available, but LSG is the preferred representation when valence-state information must be explicit. In the current API this representation is requested with format="tuple".

Important LSG fields:

Field	Meaning
sigma_order / pi_order	Authoritative bond components for Lewis-state rewriting.
kekule_order	Integer-like bond order used for product reconstruction; normally sigma_order + pi_order.
lone_pairs / radical	Valence-state fields used by LSG matching and product accounting.
valence_electrons	Element valence-shell reference used when recomputing charge.
order	Legacy or presentation order. Aromatic 1.5 values are useful for matching and visualization, but not the LSG-authoritative rewrite source.

Building an LSG/ITS graph with Lewis-state fields

from synkit.IO import rsmi_to_its

rsmi = "[CH3:1][Cl:2].[NH3:3]>>[CH3:1][NH3+:3].[Cl-:2]"
its = rsmi_to_its(rsmi, format="tuple", core=False)

print(its.nodes[2]["lone_pairs"])
print(its.edges[1, 2]["sigma_order"])

Note

Aromatic LSG matching is intentionally conservative. Aromaticity is still useful for presentation and pruning, but full aromatic-system relabeling is tracked as ongoing work.

Example: Construct and Visualize an ITS

Build an ITS, extract the reaction center, and visualize

from synkit.IO.chem_converter import rsmi_to_graph
from synkit.Graph.ITS.its_construction import ITSConstruction
from synkit.Graph.ITS.its_decompose import get_rc
from synkit.Vis import GraphVisualizer
import matplotlib.pyplot as plt

rsmi = (
    '[CH3:1][CH:2]=[O:3].'
    '[CH:4]([H:7])([H:8])[CH:5]=[O:6]'
    '>>'
    '[CH3:1][CH:2]=[CH:4][CH:5]=[O:6].'
    '[O:3]([H:7])([H:8])'
)

react_graph, prod_graph = rsmi_to_graph(rsmi)

its_graph = ITSConstruction().ITSGraph(react_graph, prod_graph)
rc_graph = get_rc(its_graph)

vis = GraphVisualizer()
fig, axes = plt.subplots(1, 2, figsize=(14, 6))
vis.plot_its(its_graph, axes[0], use_edge_color=True, title='A. Full ITS Graph')
vis.plot_its(rc_graph, axes[1], use_edge_color=True, title='B. Reaction Center')
plt.show()

Figure: (A) Full ITS graph and (B) reaction-center-only ITS graph for the aldol condensation.

MTG Submodule

The synkit.Graph.MTG package provides tools for constructing and analyzing Mechanistic Transition Graphs (MTGs) from reaction-center ITS graphs:

• MCSMatcher — maximum common substructure mappings

• MTG — MTG construction from ITS graphs and MCS mapping

The current MTG direction is aligned with LSG/ITS. Invariant atom data such as element and atom_map should be stored once, while temporal fields such as charge, hcount, lone_pairs, radical, sigma_order, and pi_order store compact histories across snapshots. This avoids redundant *_step_history attributes and makes MTG-to-ITS round trips easier to inspect.

MTG to ordered ITS steps

from synkit.Graph.MTG.mtg import MTG

mtg = MTG([step_1_its, step_2_its])
step_its = mtg.get_its_steps()
composed = mtg.get_compose_its()

When an MTG is built from RSMI strings, SynKit 1.4.0 converts those strings to Lewis State Graph ITS by default:

RSMI sequence to LSG MTG

mtg = MTG(step_rsmis, mcs_mol=True)

Legacy string conversion is still available for compatibility:

Legacy MTG from RSMI strings

mtg = MTG(step_rsmis, mcs_mol=True, its_format="typesGH")

Compact MTG data model

An LSG-backed MTG is a normal networkx.Graph. Node attributes split into two categories:

Attribute type	Examples	Meaning
Invariant atom fields	element, atom_map, valence_electrons	Stored once because the atom identity does not change across the mechanism.
State timelines	hcount, charge, radical, lone_pairs, present	Tuples with one value per mechanism state. For n elementary steps, these timelines have length n + 1.
Bond timelines	kekule_order, sigma_order, pi_order	Tuples with one bond state per mechanism state. None means the bond or one endpoint is outside that state; 0 means both atoms are present but no bond exists.

This compact form intentionally avoids legacy typesGH and redundant *_step_history attributes in the new Lewis State Graph path.

Example: LSG MTG changed core

This example reads a stepwise aldol mechanism, constructs an LSG-backed MTG directly from the RSMI strings, and visualizes the changed core. The default MTG string conversion uses format="tuple" internally, so the result stores Lewis-state timelines rather than legacy typesGH fields.

Building and visualizing a compact LSG MTG

from synkit.IO import load_database
from synkit.Graph.MTG.mtg import MTG
from synkit.Vis import draw_mtg_graph

data = load_database("Data/Testcase/mech.json.gz")[0]
neutral = data["mechanisms"][1]
steps = [step["smart_string"] for step in neutral["steps"]]

mtg = MTG(steps, mcs_mol=True)
graph = mtg.get_mtg()

assert mtg._tuple_its
assert not any("typesGH" in attrs for _, attrs in graph.nodes(data=True))

fig, ax = draw_mtg_graph(
    mtg,
    title=f"{neutral['mech_name']} - changed core",
    changed_only=True,
    show_edge_labels=True,
    compress=True,
)

compress=True labels only the first and final state of each changed edge. Use compress=False when debugging the full mechanism-state sequence.

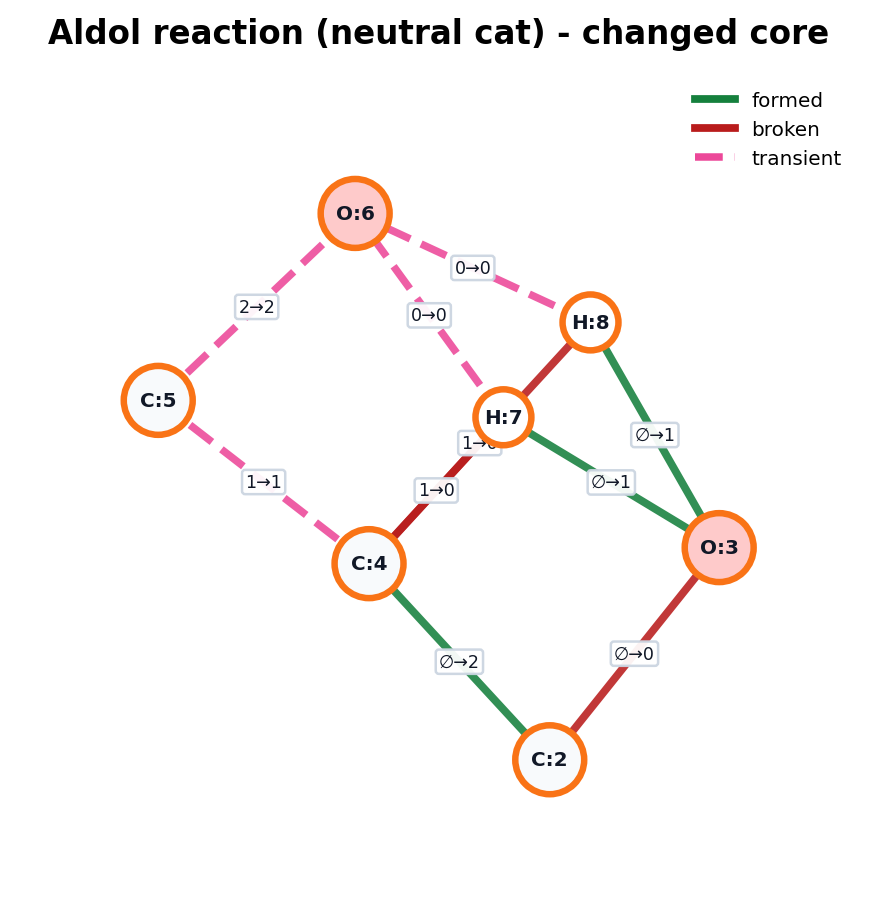

Figure: LSG MTG changed-core view for the neutral aldol mechanism. Green edges are net formed, red edges are net broken, and pink dashed edges are transient timelines that change internally but have the same compressed first/final state.

Round-trip helpers

MTGs can be projected back to their ordered ITS steps or to a composed outer-state ITS:

MTG projections

step_its = mtg.get_its_steps()
step_rsmi = mtg.get_rsmi_steps()
composed = mtg.get_compose_its()

Use get_its_steps() when validating temporal history. Use get_compose_its() when you need the net start/end reaction encoded as a single ITS graph.

Functional Groups

The synkit.Graph.FG package detects functional groups directly on SynKit molecular networkx graphs. It avoids an external FG representation and returns labels in graph/node-index space.

Core APIs:

• FunctionalGroupDetector

• smiles_to_graph_and_functional_groups()

• FunctionalGroupAudit

Functional groups from SMILES

from synkit.Graph.FG import smiles_to_graph_and_functional_groups

graph, groups = smiles_to_graph_and_functional_groups(
    "CC(=O)OC1=CC=CC=C1C(=O)O"
)

print(groups)

Example output

[('ester', (2, 3, 4)), ('carboxylic_acid', (11, 12, 13))]

Detection is hierarchical: specific labels such as carboxylic_acid can suppress generic nested labels such as carbonyl when the broader label would be less useful. Public labels cover common carbonyl/acyl, oxygen, nitrogen/C=N, sulfur, boron, silicon, phosphorus, and heteroaromatic families.

Context graph

The synkit.Graph.Context submodule expands reaction centers to include local neighborhoods, enabling context-aware matching and analysis.

Context graph expansion example

from synkit.IO import rsmi_to_its
from synkit.Graph.Context.radius_expand import RadiusExpand
from synkit.Vis.graph_visualizer import GraphVisualizer

smart = (
    '[CH3:1][O:2][C:3](=[O:4])[CH:5]([CH2:6][CH2:7][CH2:8][CH2:9]'
    '[NH:10][C:11](=[O:12])[O:13][CH2:14][c:15]1[cH:16][cH:17]'
    '[cH:18][cH:19][cH:20]1)[NH:21][C:22](=[O:23])[NH:24][c:25]1'
    '[cH:26][c:27]([O:28][CH3:29])[cH:30][c:31]([C:32]([CH3:33])'
    '([CH3:34])[CH3:35])[c:36]1[OH:37].[OH:38][H:39]>>'
    '[C:11](=[O:12])([O:13][CH2:14][c:15]1[cH:16][cH:17][cH:18]'
    '[cH:19][cH:20]1)[OH:38].[CH3:1][O:2][C:3](=[O:4])[CH:5]'
    '([CH2:6][CH2:7][CH2:8][CH2:9][NH:10][H:39])[NH:21][C:22]'
    '(=[O:23])[NH:24][c:25]1[cH:26][c:27]([O:28][CH3:29])[cH:30]'
    '[c:31]([C:32]([CH3:33])([CH3:34])[CH3:35])[c:36]1[OH:37]'
)

its = rsmi_to_its(smart)
rc = rsmi_to_its(smart, core=True)

exp = RadiusExpand()
k1 = exp.extract_k(its, n_knn=1)

gv = GraphVisualizer()
gv.visualize_its_grid([rc, k1])

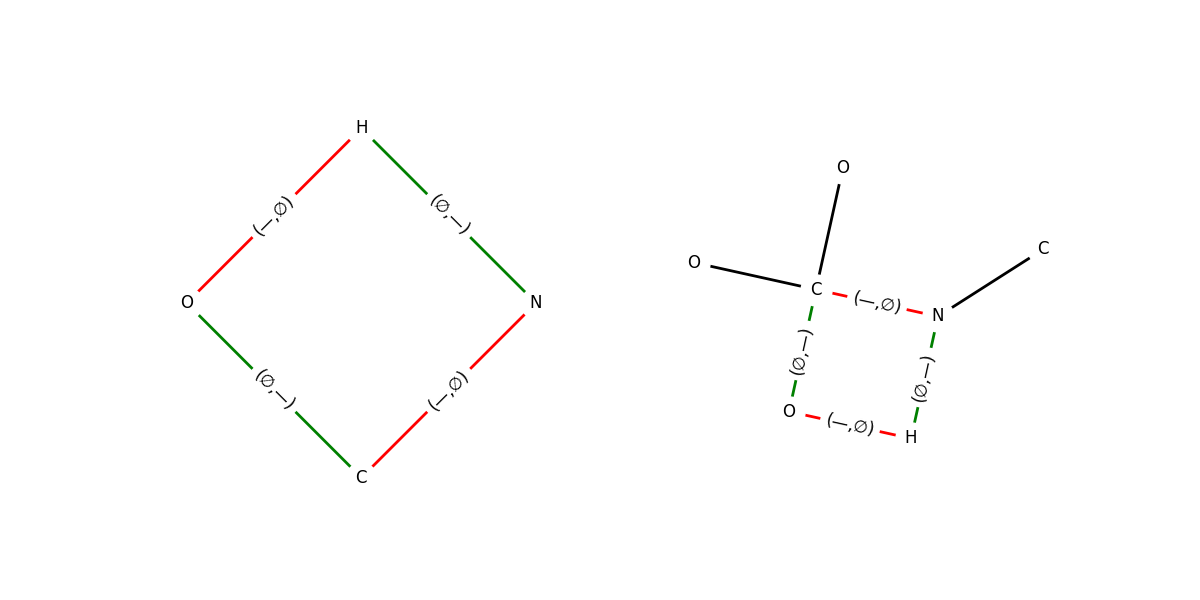

Figure: (A) Minimal reaction center. (B) First-shell context expansion (k=1).

See Also

• synkit.IO — format conversion utilities

• synkit.Synthesis — reaction prediction and network exploration
